Vertical Shaft Impact Crusher

Vertical Shaft Impact Crusher

Search word:

VSI Sand Making Machine

Type: Tertiary Crusher
Input Size: 40mm--120mm
Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc
Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
Capacity: 5-600 TPH

Please contact us at :   Tel:

55-11-94873-1148

   E-mall:junqiltda@yahoo.com.br
  • Specifications Vertical Shaft Impact Crusher


    Model
    Capacity (T/H) The max feeding size(mm) Speed(r/min) Double motor power(kW) Dimension L×W×H (MM)
    Weight (t)
    Lubrication station
    Double oil pump motor power(kW) Security Over Dimension L×W×H(mm Tank heater power(kW)(kW)
    Surrounding feed and center feed Full center feed Soft stone Hard Material
    VSI7611 120-180 60-90 ≤35 ≤30 1700-
    1930
    2X55 4100x2250 x2315 8


    2X0.55
    One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return,Air cooler lowers oil temperature, heater warms up oil temperature in winter.


    1200X790X 1120



    2
    VSI8518 200-260 100-130 ≤40 ≤35 1520-
    1690
    2X90 4160x2300 x2476 12
    VSI9526 300-380 150-190 ≤45 ≤40 1360-
    1510
    2X132 4540x2500 x2911 13
    VSI1140 450-520 225-260 ≤50 ≤45 1180-
    1300
    2X200 5000x2716 x3117 18.5
    VSI1145 500-640 250-360 ≤50 ≤45 1200-
    1390
    2X220 5450x2900 x3300 19.5
    VSI1150 413-663 344-368 ≤50 ≤45 1200-
    1390
    2X250 5450×2900 ×3365 19.8
    VSI1263 545-583 454-486 ≤60 ≤50 900-
    1150
    2X315 5700x2980 x3530 19
  • Brief Introduction Vertical Shaft Impact Crusher

    Vertical shaft impact crusher is widely used in all kinds of minerals. It provides the high quality sand and crushed stone aggregate to the high-speed railroad, high-rise construction, municipal administration construction, water and electricity dam construction, concretes agitation station. It is also applicable to crush various stones with different hardness in medium and fine crushing area.

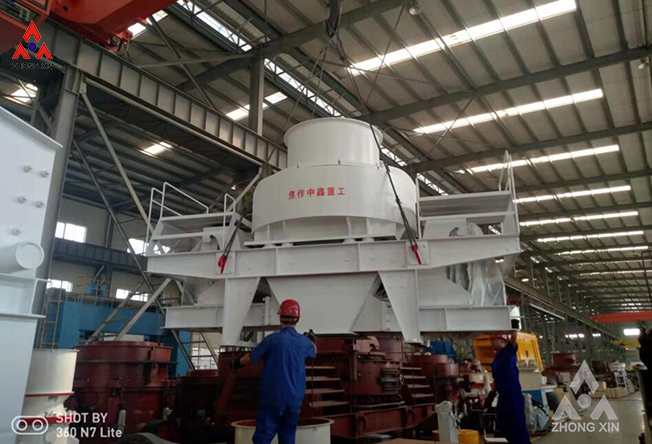

    Vertical shaft impact crusher

    VSI Vertical shaft impact crusher

  • Features Vertical Shaft Impact Crusher

    1、“stone striking stone” working principle, high efficiency, low electricity consumption, and high efficiency crushing
     2、Strong ability of through the non-crushing material, low effects by the material moisture content

    VSI Vertical shaft impact crusher

     3、Suitable to crush stones with mid-hardness, high hardness, and super high hardness
     4、Mechanism for the production of sand, the gradation of finished product is in an adjustable fineness modulus.

    VSI Vertical shaft impact crusher

     5、Simple structure, low cost, easy operation/ maintenance and installation
     6、Low noise and the dust pollution
     7、Low weight and various installation, can be installed on mobile

    VSI Vertical shaft impact crusher

  • Working Principle Vertical Shaft Impact Crusher

    The material falls from the upper side of machine, then into the impeller, with the effect of centrifugal force, the material was crushed with other parts of the material which shunt around the impeller in a umbrella shape.

    VSI Vertical shaft impact crusher

    After the cross impacting, the materials will be forming an eddy current and then impact, crush with each other again, then discharging from the lower part. The whole system forms a close circuit and through multi-cycles, finally matched granularity of the final product by the control of screen set.

    VSI Vertical shaft impact crusher
