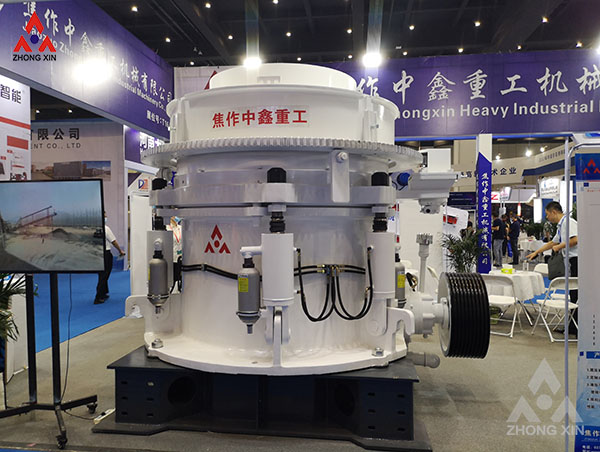

Cone Crusher,XHP Hydraulic Cone Crusher,Hydraulic Cone Crusher, Multi-cylinder hydraulic cone crusher
Type: Secondary Crushing
Input Size: 95mm--353mm
Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).
Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
Capacity: 90-1200 TPH
|
Model |
Cavity |
Standard Type |
Short Type |
Power |
Capacity (t/h) |
Weight(t) |
||
|
Feeding Size (mm) |
Min Discharging Size (mm) |
Feeding Size (mm) |
Min Discharging Size (mm) |
(kw) |
||||
|
XHP200 |
Super coarse |
|
|
|
|
132-200 |
90-250 |
14 |
|
Coarse |
185 |
19 |
76 |
10 |
||||
|
Medium |
125 |
17 |
54 |
6 |
||||
|
Fine |
95 |
13 |
23 |
6 |
||||
|
Super Fine |
|
|
10 |
5 |
||||
|
XHP300 |
Super coarse |
230 |
25 |
|
|
180-250 |
115-440 |
19.96 |
|
Coarse |
210 |
20 |
75 |
10 |
||||
|
Medium |
150 |
15 |
50 |
8 |
||||
|
Fine |
105 |
10 |
20 |
6 |
||||
|
Super Fine |
|
|
20 |
6 |
||||
|
XHP400 |
Super coarse |
295 |
30 |
|
|
280-355 |
140-630 |
28.72 |
|
Coarse |
250 |
25 |
90 |
10 |
||||
|
Medium |
195 |
20 |
50 |
8 |
||||
|
Fine |
110 |
14 |
40 |
6 |
||||
|
Super Fine |
|
|
30 |
6 |
||||
|
XHP500 |
Super coarse |
330 |
30 |
|
|
355-450 |
175-790 |
38 |
|
Coarse |
285 |
25 |
90 |
13 |
||||
|
Medium |
200 |
20 |
55 |
10 |
||||
|
Fine |
133 |
16 |
40 |
8 |
||||
|
Super Fine |
|
|
35 |
6 |
||||
|
XHP800 |
Super coarse |
353 |
32 |
|
|
550-630 |
260-1200 |
64.1 |
|
Coarse |
297 |
32 |
155 |
13 |
||||
|
Medium |
267 |
25 |
92 |
10 |
||||
|
Fine |
219 |
16 |
33 |
6 |
||||
|
Super Fine |
|
|
|
|
||||
XHP series Hydraulic Cone Crusher not only improves the production capacity and crushing efficiency, but also widens the applying area, from limestone to basalt, from stone production to various ore crushing.
Less spare part consuming and low operation cost.
Laminated crushing, final products with good shape.
Hydraulic protection and cavity clearing, high automatization, reduction of downtime.
Thin oil lubrication makes the life time increased.
Manifold crushing cavity.
Easy maintenance and operation.
When XHP series multi-cylinder hydraulic cone crusher works, the motor drives the outer copper rotate through V-belt, host pulley, drive shaft, a small bevel gear, a large bevel gear. The outer copper forces crushing cone shaft axis of the outer copper to make rotating swing, making crushing surface.
Sometimes near and sometimes leave the concave surface, so that the material is impacted, squeezed and bent in the ringlike crushing chamber consist of fixed cone and movable cone. After repeated squeezed, shocked, and bent, the material crushing to the required particle size is discharged from the lower part.
The particular crushing chamber adopting principle of intergranular lamination and matching rotor speed obviously improves the crushing ratio and productivity, largely increase the amount of cubic final product. Adopting hydraulic protection and hydraulic cavity clearing, high degree of automation, the hydraulic system can be up top and discharge automatically when the crusher is blocked instantly or over-iron, which eliminates trouble of halting to clear the material manually. It makes the maintenance more easier, cost lower.
The hydraulic adjustment and oil lubrication make the crusher more steady and reliable. It also adopts labyrinth sealing mode, which avoids oil mixing with water easily.
