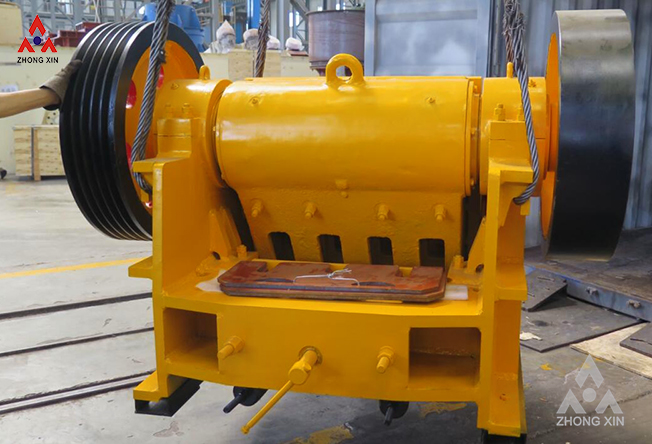

Jaw Crusher

Jaw Crusher

Search word:

Jaw Crusher

Type: Primary Crusher
Input Size: 210mm--1020mm
Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
Capacity: 3-500 (m3/h)

Please contact us at :   Tel:

55-11-94873-1148

   E-mall:junqiltda@yahoo.com.br
  • Specifications Jaw Crusher

    Model Feeding opening size(mm) Max feeding size
    (mm)
    Discharging opening size (mm) Capacity(t/h) Motor power (kW) Weight (t) Overall dimension
    (L×W×H) (mm)
    PE250×400 250×400 210 20-60 5-20 15 2.8 1180×1087×1245
    PE400×600 400×600 340 40-100 16-60 30 6.65 1797×1716×1581
    PE500×750 500×750 425 50-100 40-110 55 11.73 2119×1918×2046
    PE600×900 600×900 500 75-160 64-128 75 15.33 2309×2028×2368
    PE750×1060 750×1060 630 80-140 51-208 110 27 2776×2585×2760
    PE870×1060 870×1060 740 170-270 180-360 110 31.22 2990×2416×2893
    PE900×1200 900×1200 780 95-225 350-450 132 40 3371×2750×3250
    PE1000×1200 1000×1200 850 195-280 280-550 132 41 3440×2750×3250
    PE1200×1500 1200×1500 1020 150-300 400-800 220 89.5 4930×3334×4057
    PE1300×1600 1300×1600 1100 130-280 800-950 315 102 4380×3397×4440
    PE1500×1800 1500×1800 1200 220-350 450-1000 355 124.4 5370×3853×4646
    PEX-150×750 150×750 120 18-48 8-25 15 3.5 1252×1593×1025
    PEX-250×750 250×750 210 20-50 13-35 30 4.96 1435×1832×1715
    PEX-250×1000 250×1000 210 25-60 16-52 30 6.5 1706×1964×1380
    PEX-250×1200 250×1200 210 25-60 20-61 37 8.8 1700×2132×1450
    PEX-300×1300 300×1300 250 20-90 25-95 75 12.6 2026×2320×1723
  • Brief Introduction Jaw Crusher

    Jaw Crusher is suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

    Jaw Crusher

    Jaw Crusher

  • Features Jaw Crusher

    1,High crushing ratio, well-distributed final product size.
    2,Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers

    Jaw Crusher

    3,lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
    4,simple structure, reliable performance, low maintenance cost
    5,little dust and low noise

    Jaw Crusher

  • Working Principle Jaw Crusher

    The electrical motor transmits power to the eccentric shaft through v-belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw move upwards and downwards.

    Jaw Crusher

    This movement would trigger the toggle plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards the fixed jaw, materials in the crushing cavity will be squashed or chopped.

    Jaw Crusher

    And then the movable jaw travels back, the chopped or squashed materials which meet the requirement will be discharged from the outlet. Since the motor keeps working. The crusher will crush and discharge periodically to achieve mass production.

    Jaw Crusher
